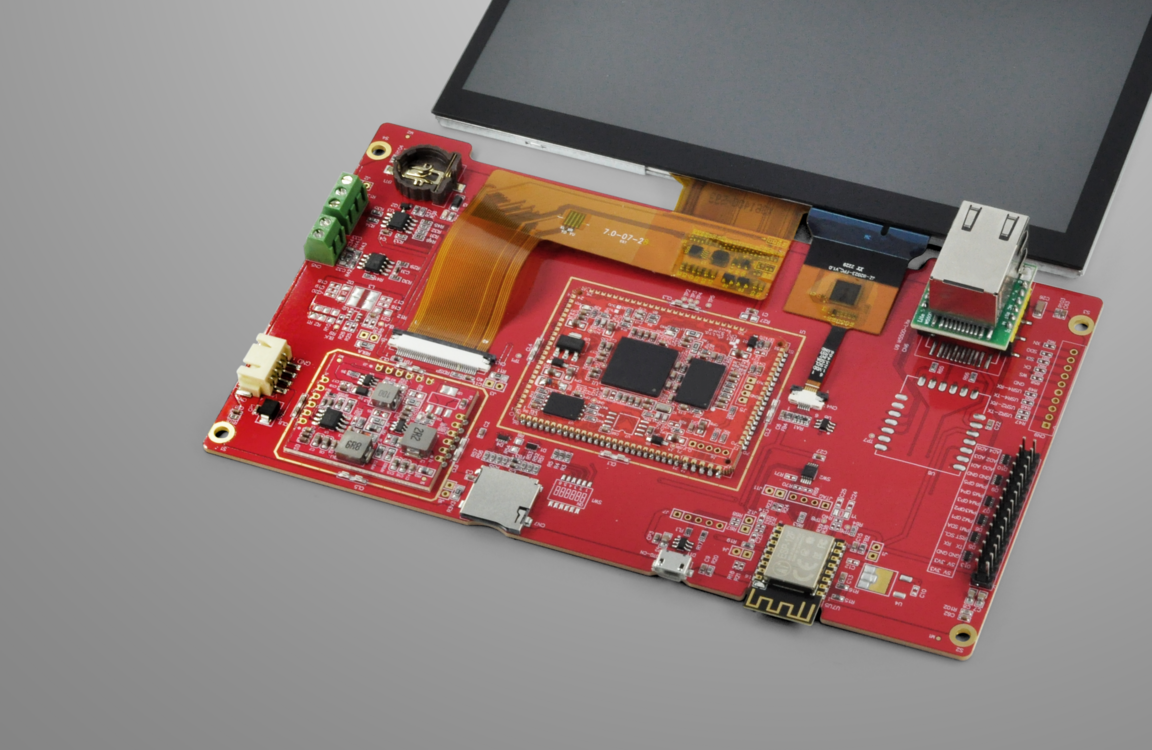

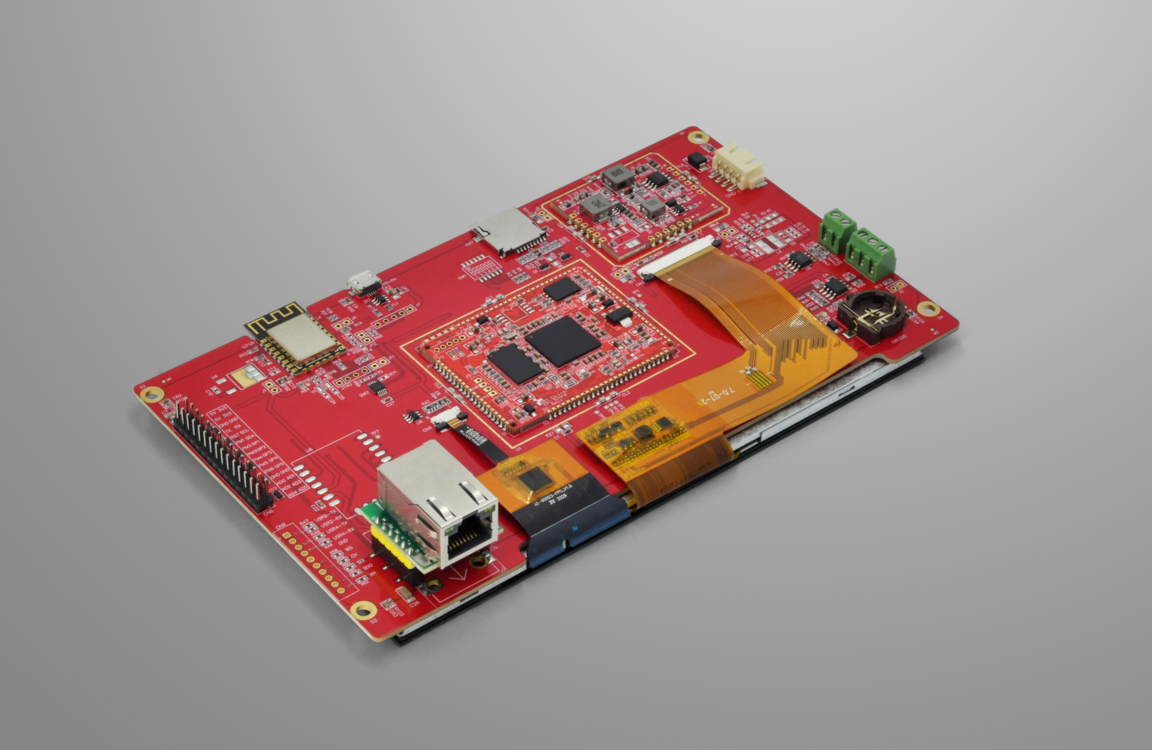

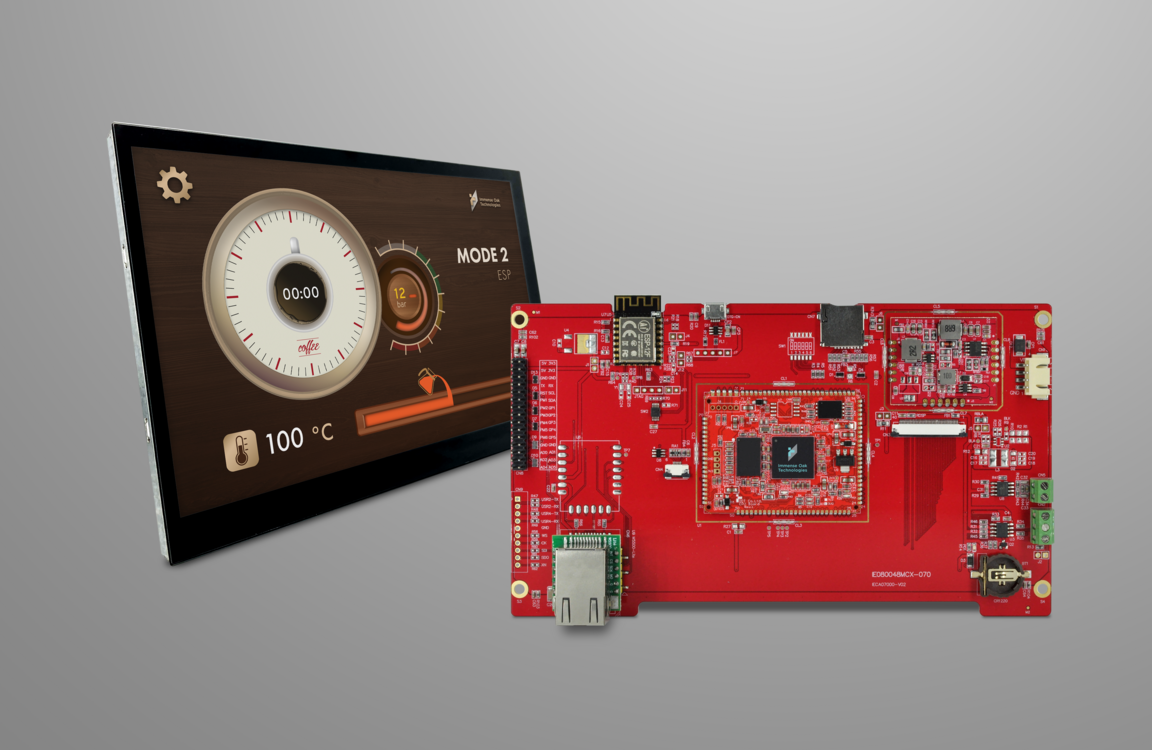

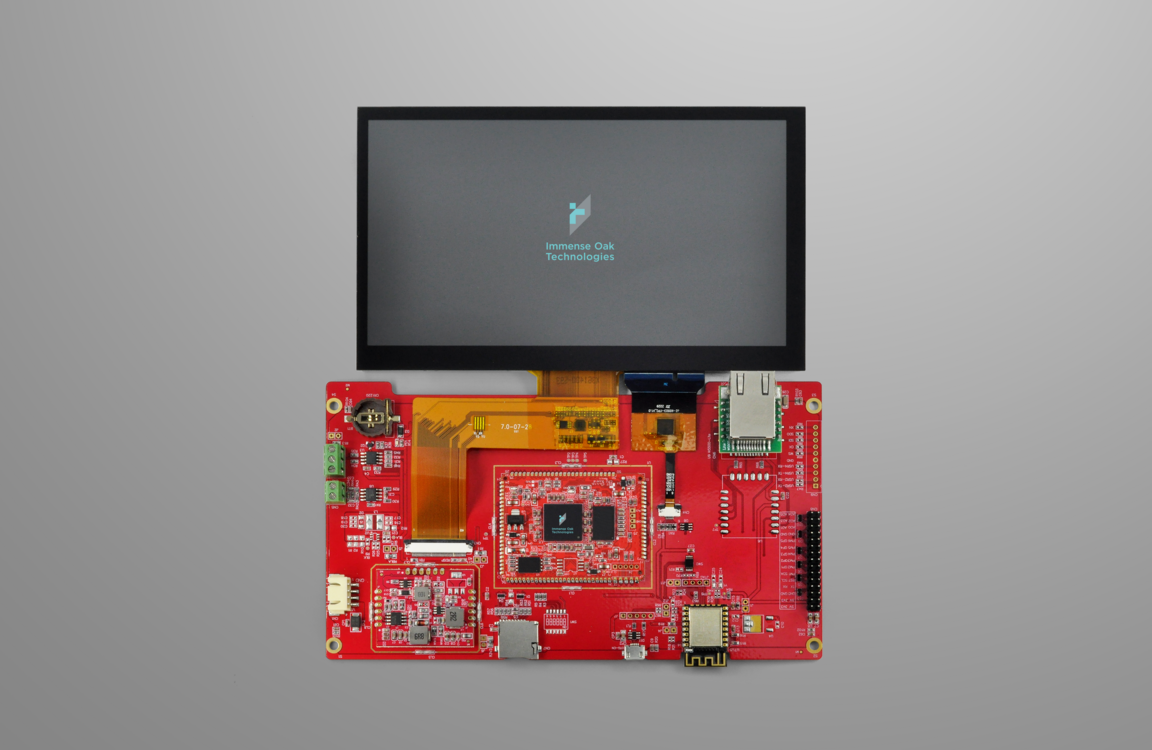

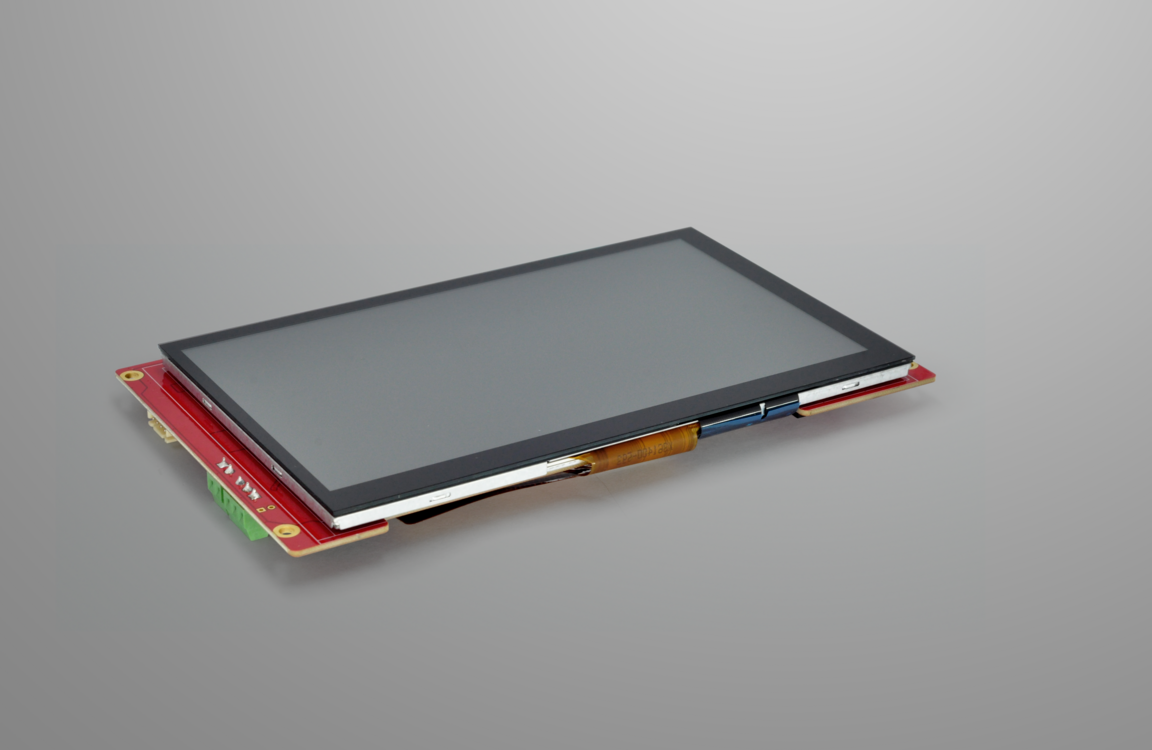

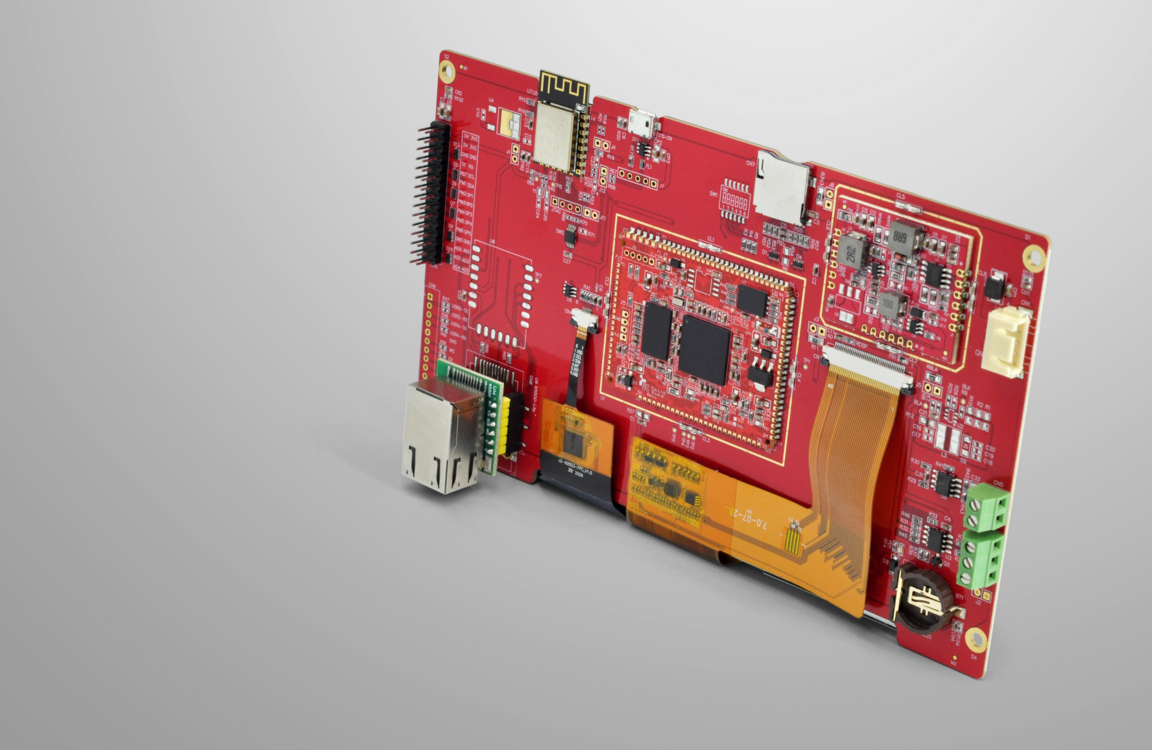

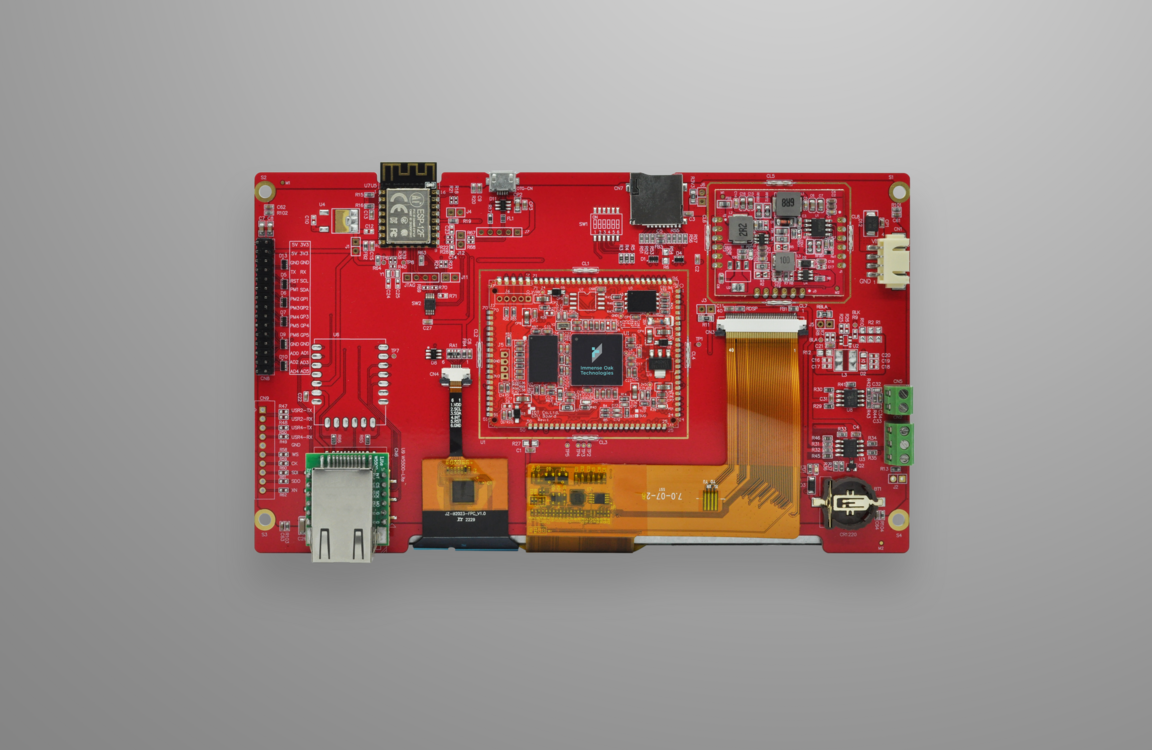

NEXUS
PANEL
7.0"
IE08048MCA-070AWG
7.0" 800x480
Capacitive-Touch


Features
  • Working with ADE for delivering illuminating HMI
  • Support customized combination of Ethernet, Wi-Fi, RS-485, RS-232, CAN bus, and NB-IoT
  • Support 7.0” 800x480 LCM with CTP from our partner
  • Feature ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
  • Built-in 2Gb (256MB) Flash memory for storage
  • Support ARGB (16,777,216 colors) with 256 levels of transparency
  • Support LCM backlight control
  • Support GPIO, PWM, Input-Capture and ADC functions
  • Support UART communication interfaces
  • Support 12V~24V flexible DC input
  • Support I2C/SPI interfaces
  • 4x 3.5mm holes for mounting tabs with M4 screws
Downloads
Datasheet
