SAMPLE
UBIQUE
PANEL
5.0"
IA208048MC-050ABJ
Quick Links
⇩
3.5" (320x480)
Starter Kit with RTP
Product with RTP
4.3" (480x272)
Starter Kit with CTP
Starter Kit with RTP
Product with CTP
Product with RTP
5.0" (800x480)
Starter Kit with CTP
Starter Kit with RTP
Product with CTP
Product with RTP
7.0" (800x480)
Starter Kit with CTP, IPS
Starter Kit with RTP
Product with CTP, IPS
Product with RTP
8.0" (800x600)
Starter Kit with CTP
Product with CTP

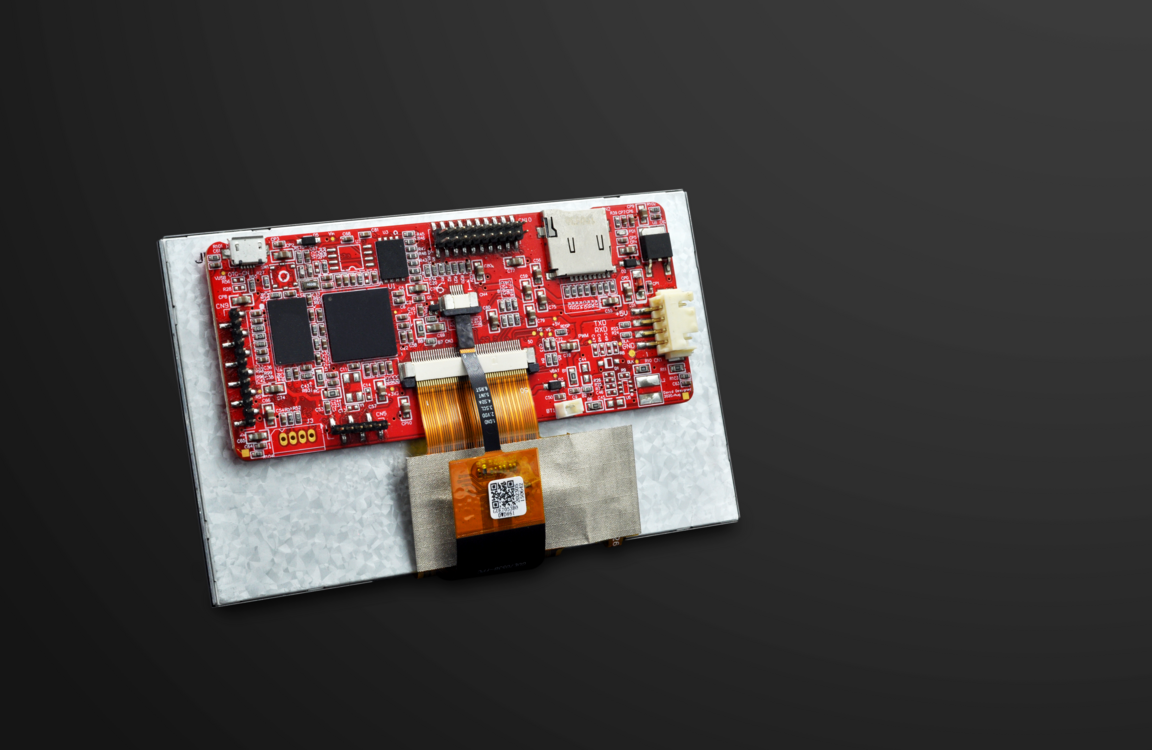

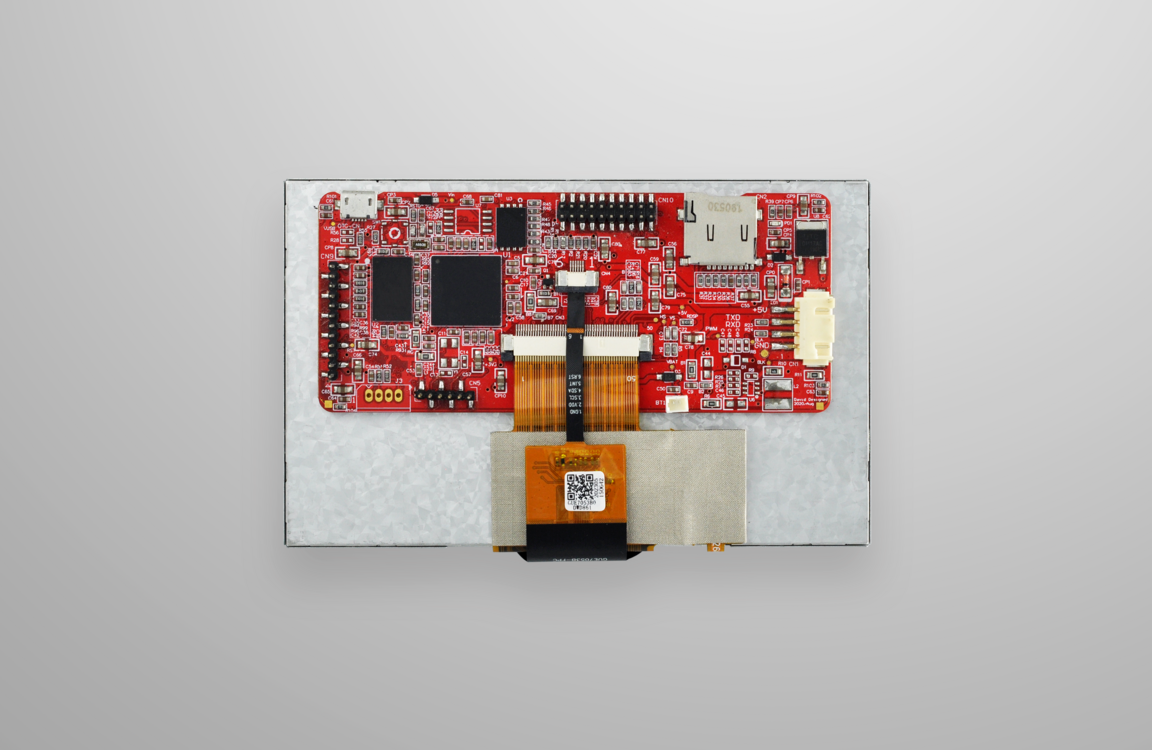

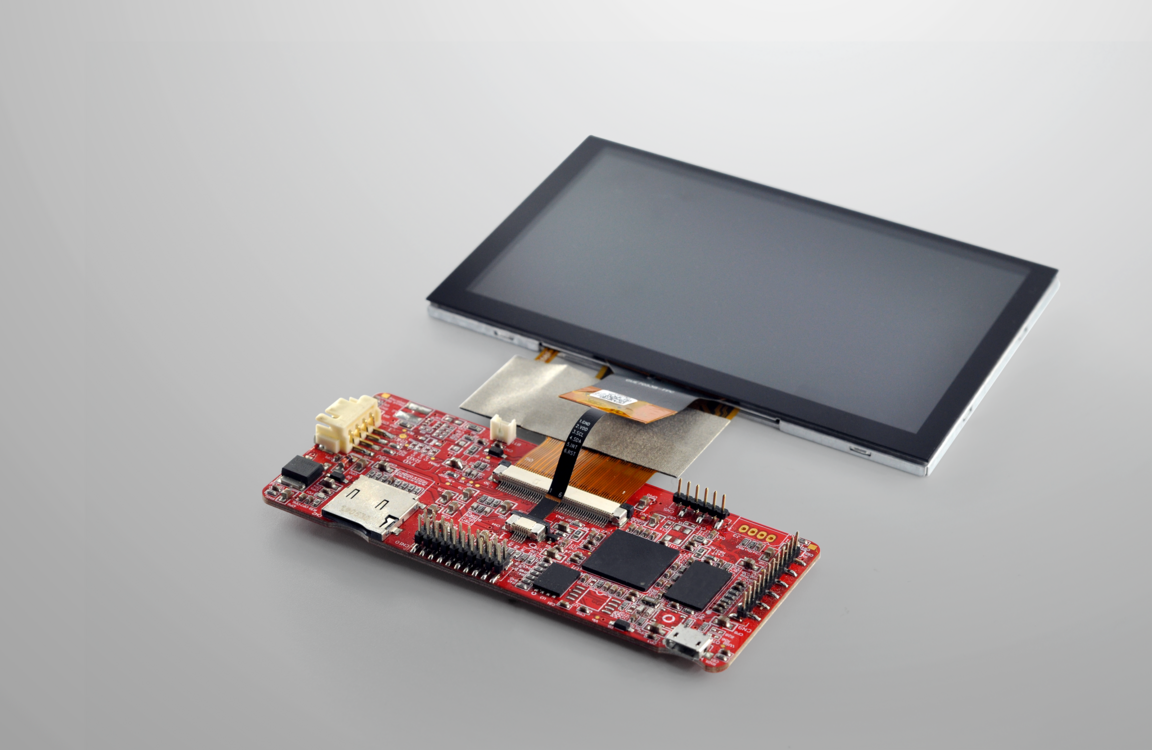

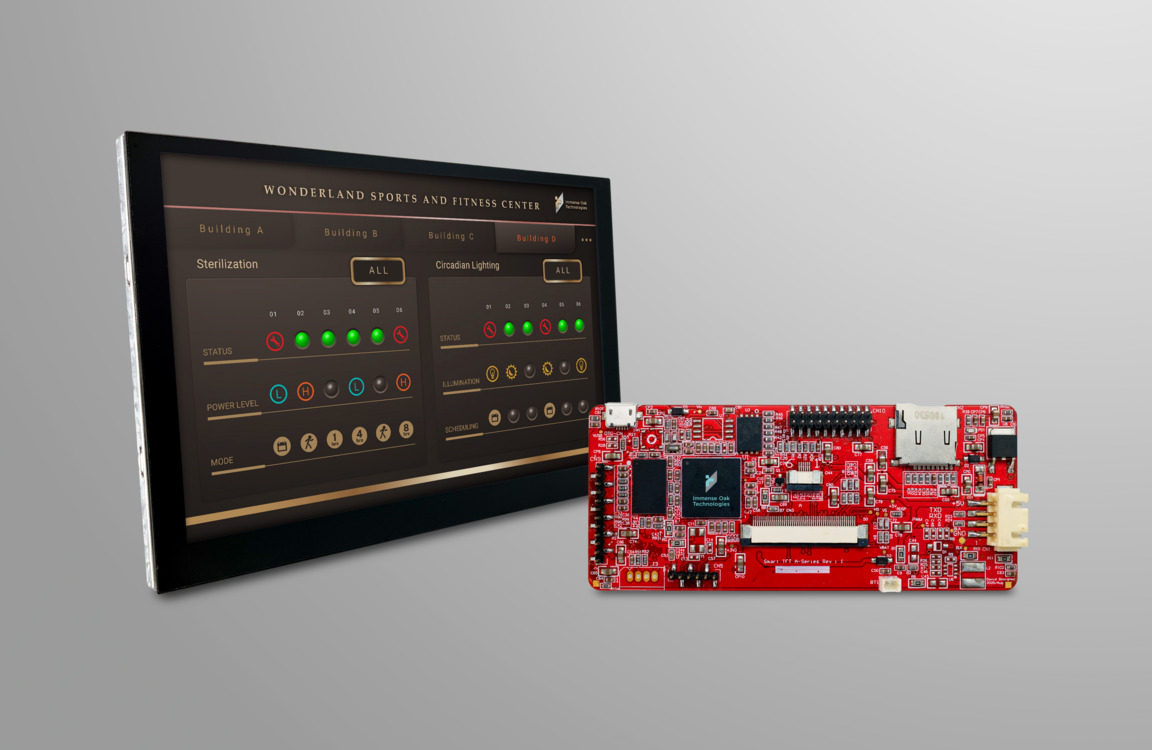

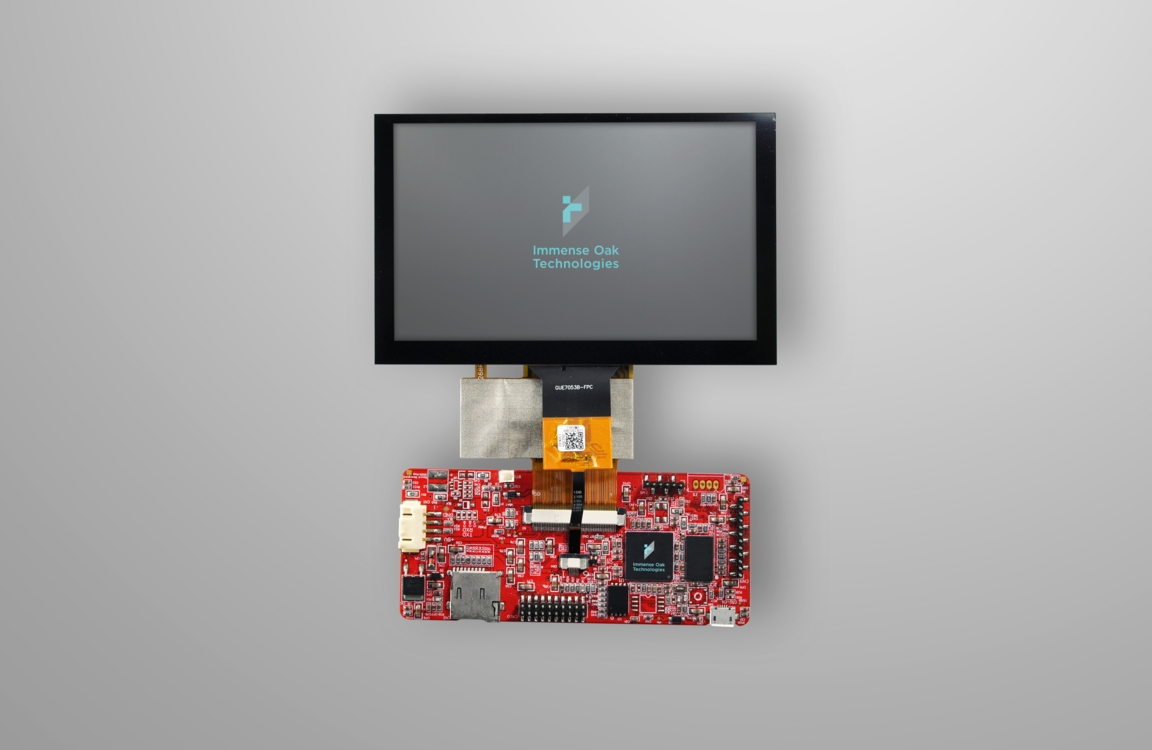

5.0" 800x480
Capacitive-Touch
Features
Working with ADE for delivering illuminating HMI
5” 800x480 LCM with CTP from our partner
ARM Cortex M7-based MCU @480Mhz with 32MB DRAM
Built-in 2Gb (256MB) Flash memory for storage
Support ARGB (16,777,216 colors) with 256 levels of transparency
Support LCM backlight control
Support GPIO, PWM, Input-Capture and ADC functions
Support UART communication interfaces
Working with IOT’s extension board (sold separately) to support Ethernet, WiFi, RS-232, RS-485 and audio line-out
Downloads
Datasheet
3D Printable Holder file is available upon request. Please contact
[email protected]
.
